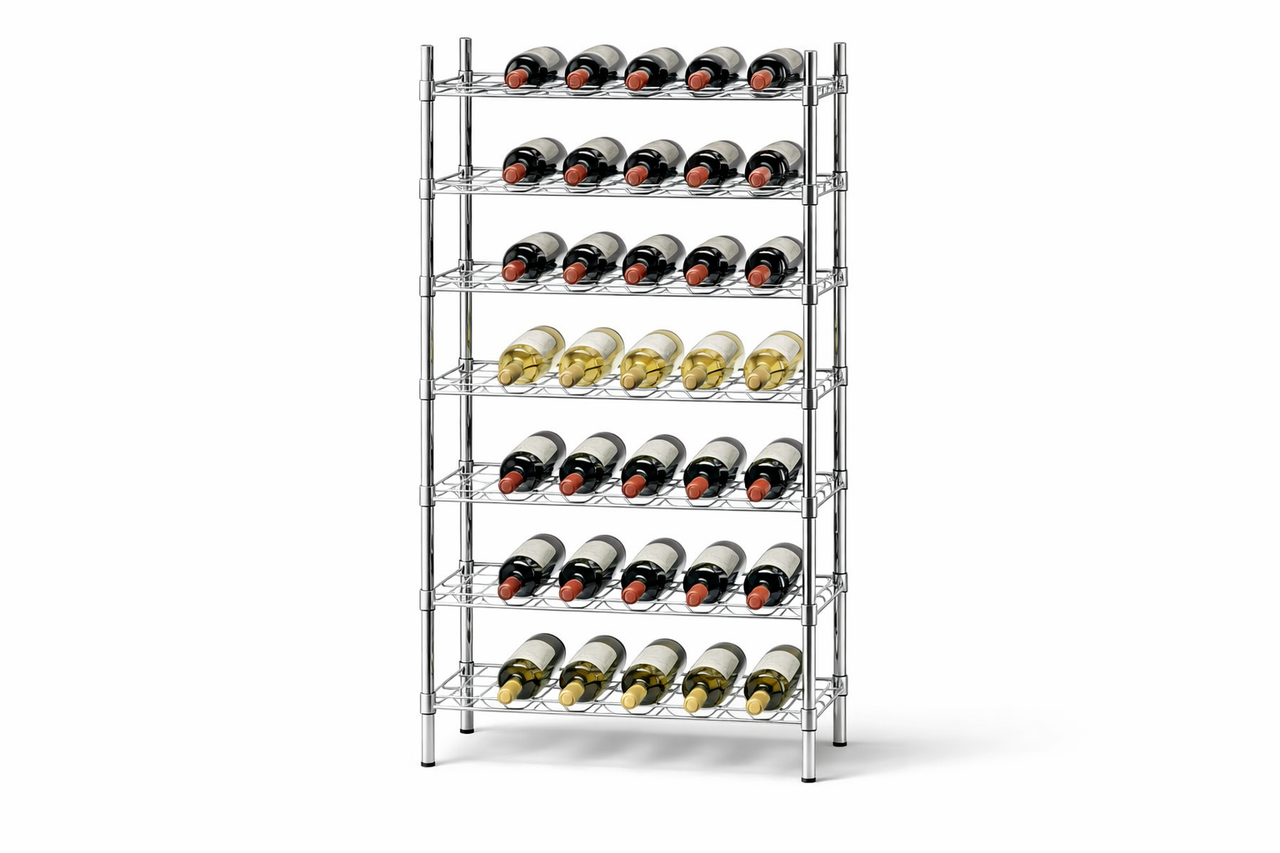

Chrome Single Wine Rack

$196.08

SKU: WNR04-143636-C

Product description

Description All Sizes & Pricing Capacity Guide Specifications Assembly & Warranty

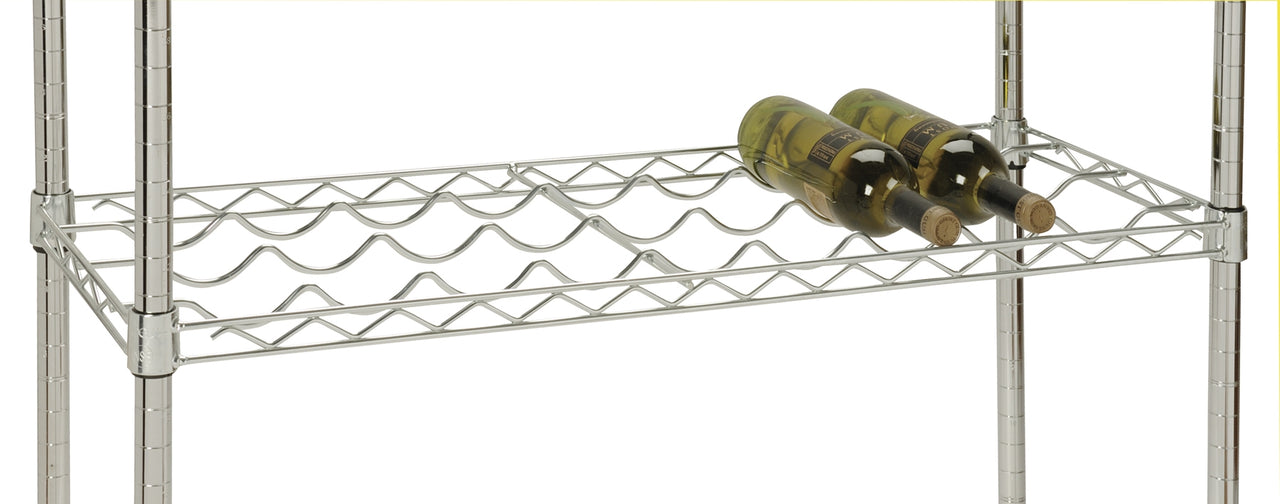

Commercial-grade wire wine rack built for serious bottle storage. Chrome-plated steel construction keeps every bottle secure and visible — each bottle is supported individually in a cradle formed by the wire shelves so it cannot roll or bump against an adjacent bottle.

Adjustable shelves in 1" increments let you configure the rack to your exact collection size. Open-wire design promotes air circulation. Cradle design allows for safe storage of both standard and magnum size bottles. Stores up to 216 bottles per unit — built for wine cellars, restaurants, retail displays, and residential collections of any size. Every bottle has a place. Every bottle stays put.

Finish

Chrome

Nickel-plated steel

Adjustable

1" Incr.

No tools needed

Capacity

216 btls

Per unit max

Shelves

Adjustable

1" increments

Height	Tiers	Bottle Capacity	Model #	Price	View / Add to Cart
14" × 36"
36"	4	36 Bottles	WNR04-143636-C	$196.08	View Add to Cart
54"	6	54 Bottles	WNR06-143654-C	$278.03	View Add to Cart
63"	10	90 Bottles	WNR10-143663-C	$430.73	View Add to Cart
74"	13	117 Bottles	WNR13-143674-C	$548.48	View Add to Cart
86"	15	135 Bottles	WNR15-143686-C	$632.96	View Add to Cart
96"	18	162 Bottles	WNR18-143696-C	$758.21	View Add to Cart
14" × 48"
36"	4	48 Bottles	WNR04-144836-C	$280.78	View Add to Cart
54"	6	72 Bottles	WNR06-144854-C	$402.20	View Add to Cart
63"	10	120 Bottles	WNR10-144863-C	$631.81	View Add to Cart
74"	13	156 Bottles	WNR13-144874-C	$807.79	View Add to Cart
86"	15	180 Bottles	WNR15-144886-C	$932.19	View Add to Cart
96"	18	216 Bottles	WNR18-144896-C	$1117.05	View Add to Cart

Shelf Size	Unit Height	Number of Shelves	Bottle Capacity	Model #
14" Deep x 36" Wide	36"	4 Shelves	36 Bottles	WNR04-143636-C
14" Deep x 36" Wide	54"	6 Shelves	54 Bottles	WNR06-143654-C
14" Deep x 36" Wide	63"	10 Shelves	90 Bottles	WNR10-143663-C
14" Deep x 36" Wide	74"	13 Shelves	117 Bottles	WNR13-143674-C
14" Deep x 36" Wide	86"	15 Shelves	135 Bottles	WNR15-143686-C
14" Deep x 36" Wide	96"	18 Shelves	162 Bottles	WNR18-143696-C
14" Deep x 48" Wide	36"	4 Shelves	48 Bottles	WNR04-144836-C
14" Deep x 48" Wide	54"	6 Shelves	72 Bottles	WNR06-144854-C
14" Deep x 48" Wide	63"	10 Shelves	120 Bottles	WNR10-144863-C
14" Deep x 48" Wide	74"	13 Shelves	156 Bottles	WNR13-144874-C
14" Deep x 48" Wide	86"	15 Shelves	180 Bottles	WNR15-144886-C
14" Deep x 48" Wide	96"	18 Shelves	216 Bottles	WNR18-144896-C

Max Capacity216 btlsPer unit

CertificationNSFCertifiedISO 9001 Mfg

Warranty5 YearsLimited

FinishChromeNickel-plated steel

Finish	Chrome - Electro plated nickel chrome over carbon steel

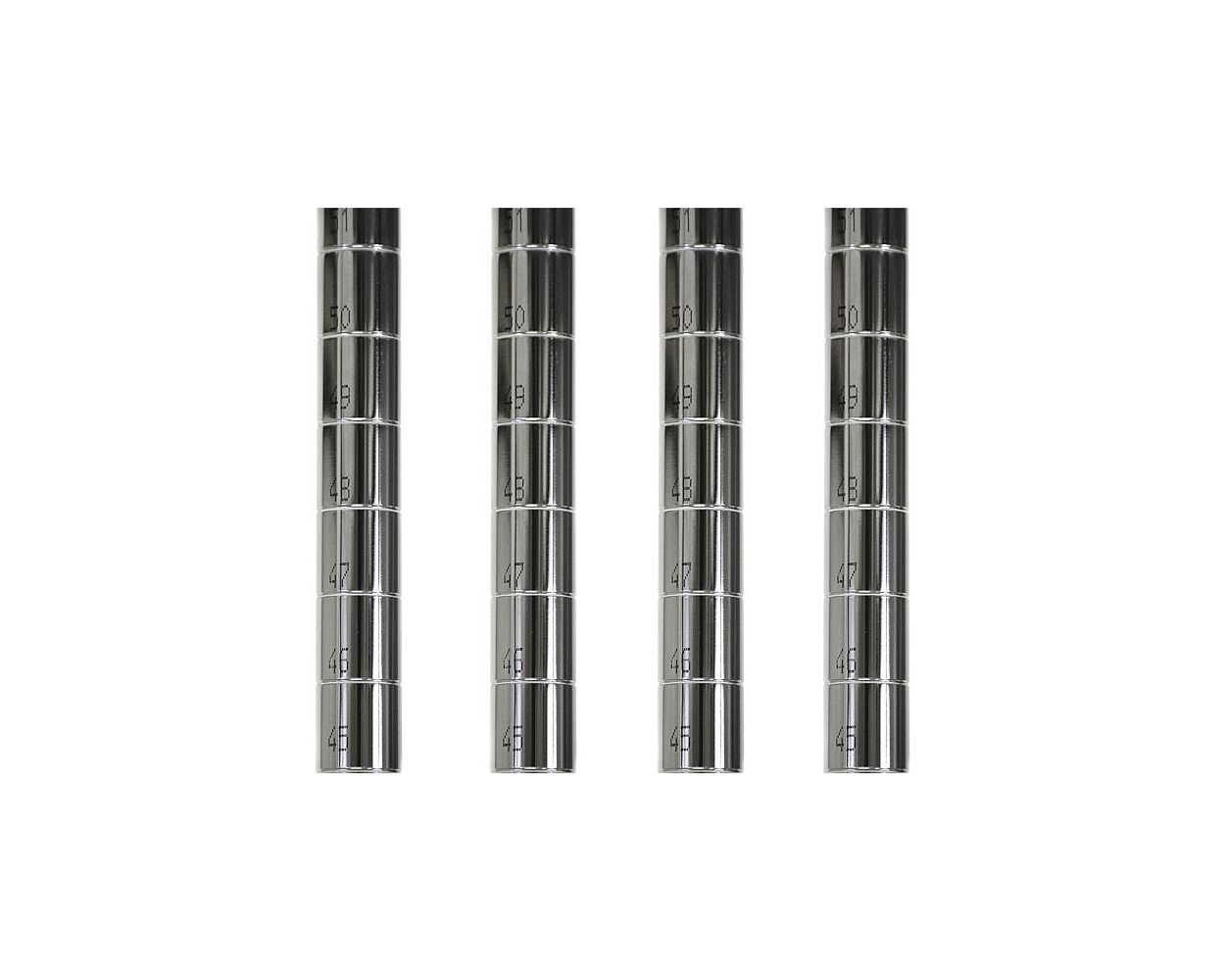

Post Diameter	1" diameter posts
Shelf Depth Options	14" Deep (single depth)
Shelf Width Options	36" Wide, 48" Wide
Height Options	36", 54", 63", 74", 86", 96"
Shelves	4 to 18 shelves depending on height, adjustable at 1" increments
Assembly	Tool-free assembly, includes all hardware
Bottle Type	Standard 750ml wine bottles
Use	Commercial or residential wine storage

Assembly

No tools required. Slide the shelves onto the posts at your desired heights and secure with the included split sleeves. Most units assemble in under 15 minutes.

Download the Assembly Guide (PDF) for step-by-step instructions.

Warranty & Certifications

5-year limited warranty
NSF Certified — approved for food service environments
Electroplated nickel chrome over carbon steel
ISO 9001 Registered Manufacturing
